Thermistor Sensors / Probes ±1°C
Below is a list of our thermister probes and sensors, along with their technical specifications and tolerances. Contact us today with any inquiries regarding our sensor systems or to place a request for a custom designed solution.
TS67 - 15,000 Ohms
|
TS67-1 Thermistor Probes
Bare Bead
- Base Resistance:15,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:2"
|
|
TS67-138 Thermistor Probes
Brass Tube with Pipe Plug
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS67-154 Thermistor Probes
Brass Tube with 38" Hex Nut
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS67-170 Thermistor Probes
Polymide Tube Epoxy Potted .25"
- Base Resistance:15,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:6"
|
|
TS67-176 Thermistor Probes
Brass Nickel Plated Tube with RTV Relief
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
TS91 - 10,000 Ohms
|
TS91-1 Thermistor Probes
Bear Bead
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:2"
|
|

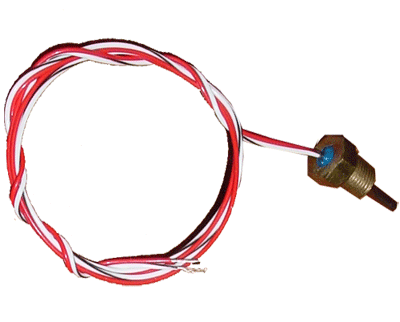

TS91-138 Thermistor Probes
Brass Pipe Plug 1/8"
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS91-154 Thermistor Probes
Brass Tube with 38" Hex Nut
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS91-170 Thermistor Probes
Polymide Tube Epoxy Potted
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:6"
|
|
TS91-176 Thermistor Probes
Brass Nickel Plated Tube with RTV Relief
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS91-178 Thermistor Probes
Epoxy Coated 1"
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
TS104 - 50,000 Ohms
|
TS104-1 Thermistor Probes
Bear Bead
- Base Resistance:10,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:2"
|
|
TS104-138 Thermistor Probes
Brass Tube .475" with Pipe Plug
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS104-154 Thermistor Probes
Brass Tube 1" with 3/8" Hex Nut
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS104-170 Thermistor Probes
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:6"
|
|
TS104-176 Thermistor Probes
Brass Nickel Plated Tube .81" with RTV Strain Relief
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS91-178 Thermistor Probes
Epoxy Coated 1"
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
TS141 - 5,000 Ohms
|
TS141-1 Thermistor Probes
Bear Bead
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over -40°C to 75°C
- Lead Length:2"
|
|
TS141-138 Thermistor Probes
Brass Tube .475" with Pipe Plug
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over -40°C to 75°C
- Lead Length:18"
|
|
TS104-154 Thermistor Probes
Brass Tube 1" with 3/8" Hex Nut
- Base Resistance:50,000 ohms
- Interchangerable Tolerance:±1°C over 0°C to 100°C
- Lead Length:18"
|
|
TS141-170 Thermistor Probes
- Polymire Tube Epoxy Potted .25"
- Interchangerable Tolerance:±1°C over -40°C to 75°C
- Lead Length:6"
|
|
TS141-176 Thermistor Probes
Brass Nickel Plated Tube .81" with RTV Strain Relief
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over -40°C to 75°C
- Lead Length:18"
|
|
TS141-178 Thermistor Probes
Epoxy Coated 1"
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over -40°C to 75°C
- Lead Length:18"
|
TS165 - 231.5k Ohms
|
TS165-1 Thermistor Probes
Bear Bead
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:2"
|
|
TS165-138 Thermistor Probes
Brass Tube .475" with Pipe Plug
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:18"
|
|
TS165-154 Thermistor Probes
Brass Tube 1" with 3/8" Hex Nut
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:18"
|
|
TS165-176 Thermistor Probes
Brass Nickel Plated Tube .81" with RTV Strain Relief
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:18"
|
|
TS165-188 Thermistor Probes
Flange Mount .187"
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:18"
|
|
TS165-32 Thermistor Probes
Epoxy Coat Bead .650"
- Base Resistance:25°C
- Interchangerable Tolerance:±1°C over 100°C to 200°C
- ±1.5°C over 25°C to 250°C
- Lead Length:18"
|
